Complete 50m kit including: 50m coil of BLACK-FEET PLUS sensitive cable, Qty.1 Controller housed in an IP65 metal box, Qty.1 line-termination, Qty.300 UV resistant ties. Power supply 13.8Vdc 45mA. Relay outputs for alarm and tamper.

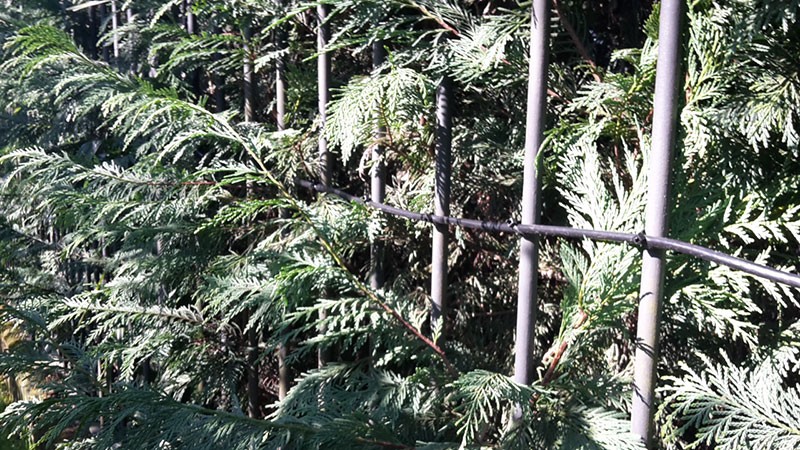

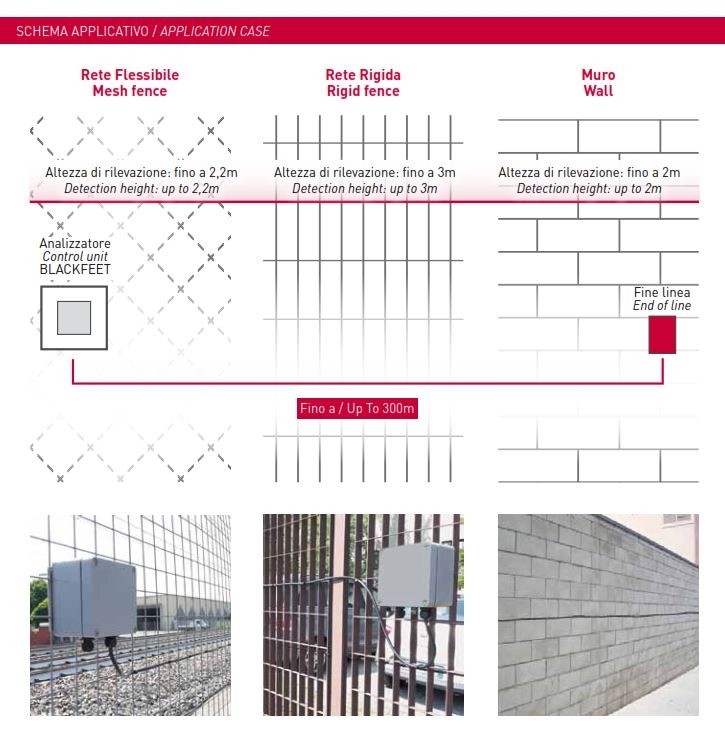

Black-Feet Plus cable is a magneto phonic linear sensor cable specifically designed to provide high performance intruder detection capability when deployed on fences or other barriers like wall used to define the perimeterm of a secure site.

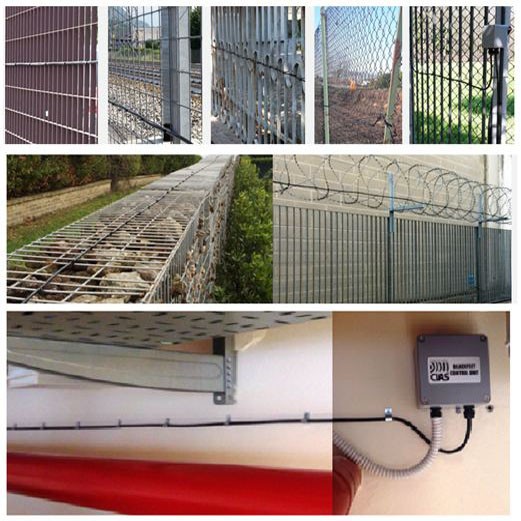

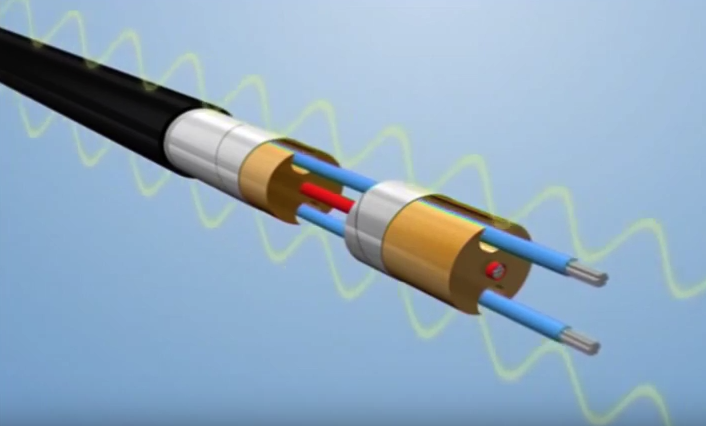

TECHNICAL FEATURES: Black-Feet Plus cable is sophisticated and easy to install – Can be supplied to site in kits 50/100/150/200/300m (including: analyser, cable, ties, end of line) – Black-Feet Plus cable sensor operates as a linear induction generator whereby precision-made concentric conductors within the sensor are arranged to vibrate within a static magnetic field generated by flexible ceramic magnetic profiles – Mechanical vibrations resulting from intrusion activity are coupled into the sensor through direct contact between the sensor and the protected structure (fence, wall, railing, etc).
